FD/FG SERIES

SELECTING THE PROPER MODEL SIZE EXTINGUISHING SYSTEM:

1. Determine the volume of the engine compartment to be protected in cubic feet or cubic meters: Measure Length, Width and Height (LxWxH) of compartment taking into consideration the curvature of the hull.

2. Select an automatic (“A”) designation or manual/automatic (“M”) designation.

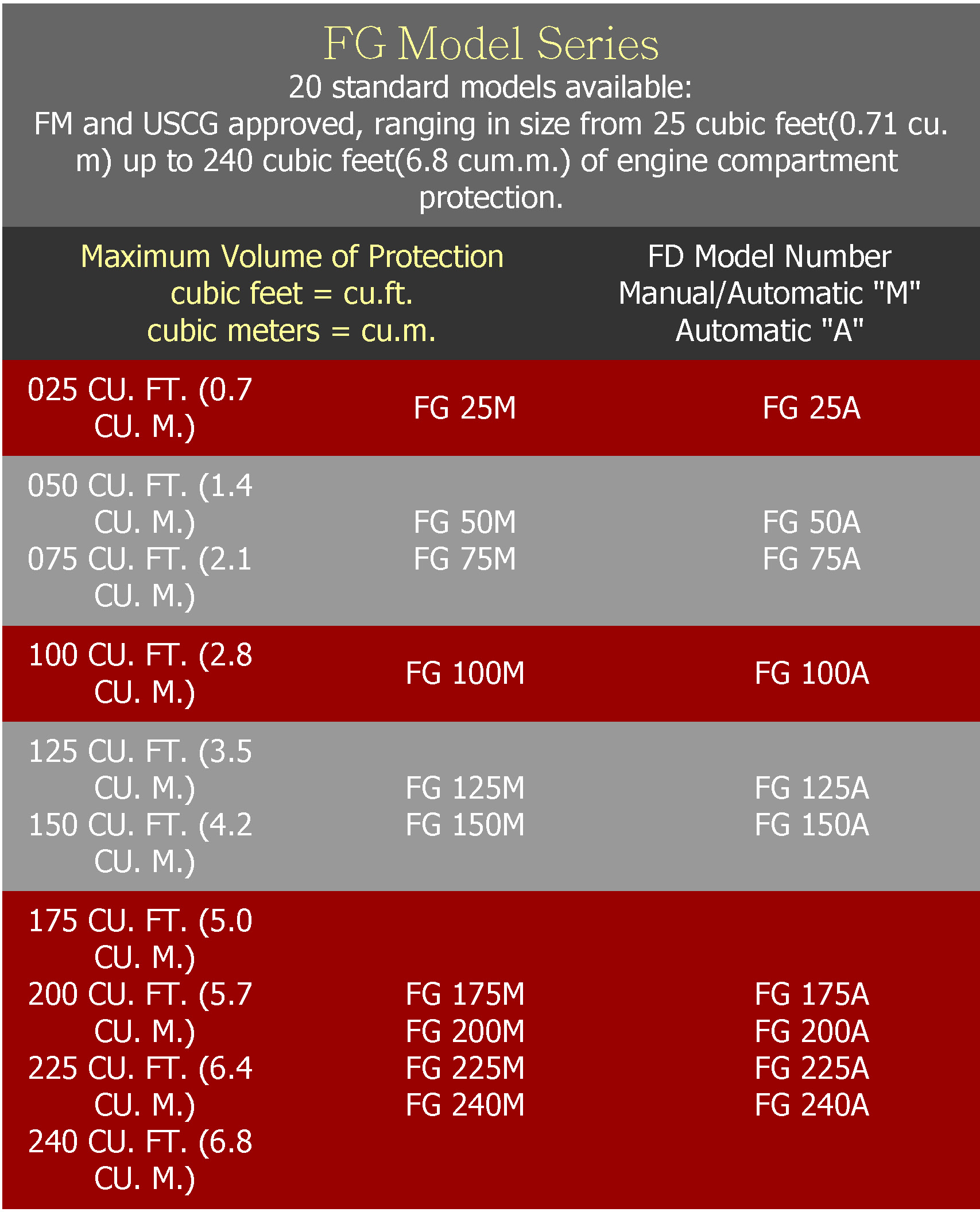

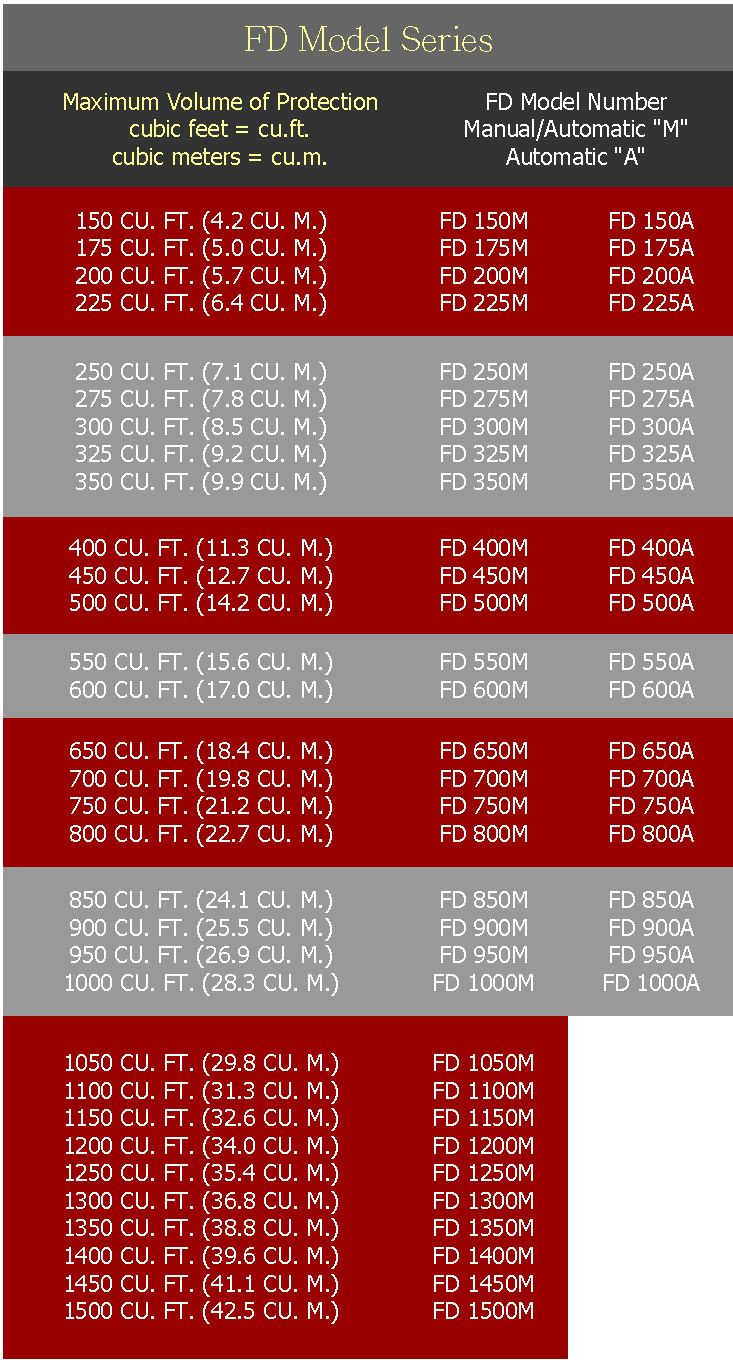

3. From the SEA-FIRE^® Model Series FG or FD specification table, select the model that meets or exceeds the calculated volume of the engine compartment.

选择合适的型号规格灭火系统：

1。确定要保护发动机舱的体积立方英尺或立方米：测量长度，宽度和高度（长×宽×高）考虑到曲率的船体舱。

2。选择自动（“A”）指定或自动/手动（“M”）指定。

3。从SEA-FIRE ^®系列型号FG或FD规范的表中，选择模型，以满足或超过了计算量的发动机舱。
