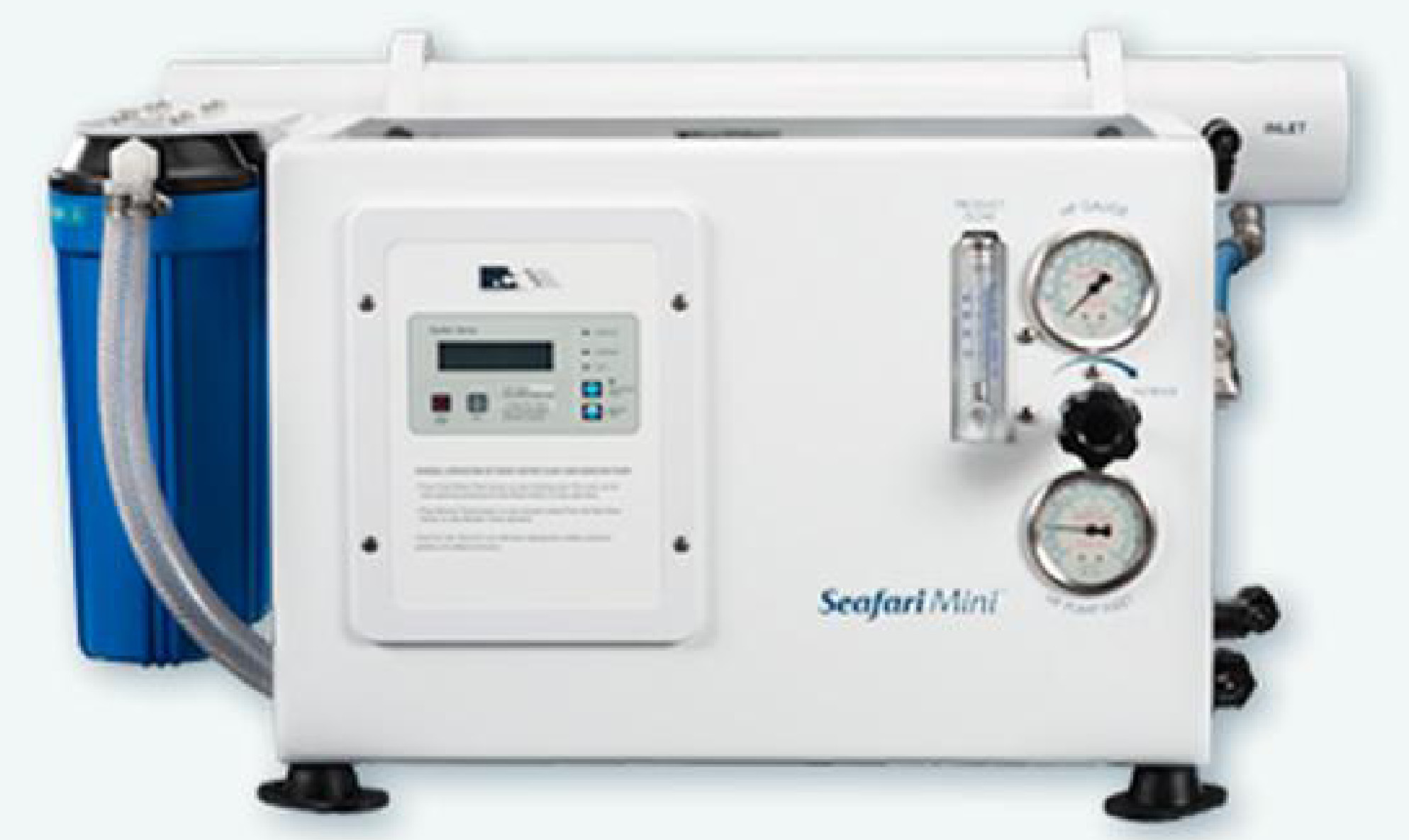

HRO SEAFARI MINI



 OVERVIEW (概述):

Now with models ranging from 170 to 750 gallons of water per day, the Seafari Mini Series of watermakers offers a larger range of fresh water production without the space restrictions. The Seafari Mini is the perfect solution for boats with little space to spare. Offering the largest production capacity for its size, you can be sure to have plenty of fresh water, without wasting precious storage or engine room space.

FEATURES:

  • Extremely quiet, smooth, and with complete vibration isolation.
  • Exclusive Solid Salinity Meter, an essential tool for product water monitoring.
  • A failsafe Product Water Diversion Valve allows only safe drinking water to enter storage tanks.
  • High rejection, high yield, commercial grade, and chemical resistant Membranes.
  • Clear viewable Sea Strainer with a cleanable Monel Mesh Screen filter for ultimate corrosion resistance and large particulate removal.
  • Exclusive high efficiency Booster Pump
  • Micro Processor Controlled Electronics provide state of the art technology and reliability with weekly Automatic Fresh Water Flush Timing (optional).
  • Stainless Steel, liquid filled exterior and interior Pressure Gauges for accurate measurement of system functions and corrosion resistance.
  • Flow Meter for visual monitoring of the product water flow
  • All High Pressure Connections are composite 316L Stainless Steel for maximum corrosion and rust resistance.
  • Water Quality Indication LED

BENEFITS:

  • Space efficient, one of the smallest compact watermakers available.
  • Simple Installation



 SPECIFICATIONS (規格):

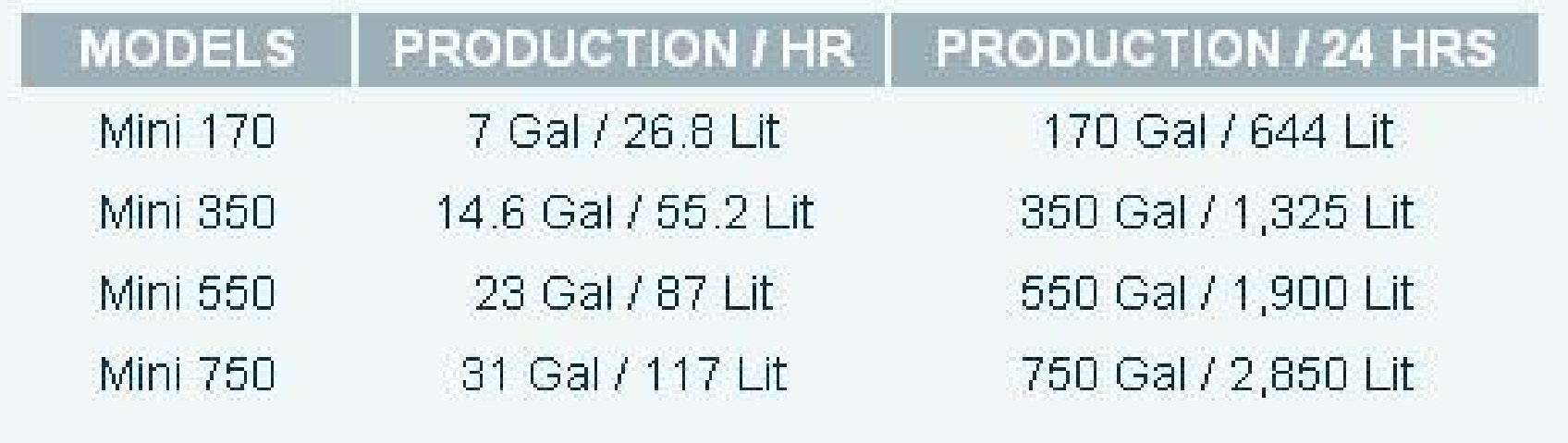

  • Product Water Produced per hour of operation: +-15% 850 psi / 56 Bar, 77°F / 25°C & 35,000 ppm TDS typical sea water
  • Salt Rejection (Chloride Ion): Minimum 99.2%, Average 99.4%
  • Product Water Temperature: Ambient to feed water temperature.
  • Salinity Monitoring: The salinity monitoring components of the system give a continuous readout in micromhos per cubic centimeter, are temperature compensated, and of a fail safe design.
  • Salinity Range: Designed for seawater use up to 50,000 ppm TDS (Nacl) (typical seawater salinity is 35,000 ppm.)
  • Temperature Range: Min. 33°F / .5°C Max. 122°F / 50°C
  • System Feed Water: Flow: 50Hz, 3.5 gpm / 13.2 lpm; 60Hz, 3 – 4.2 gpm / 11.4 – 15.9 lpm

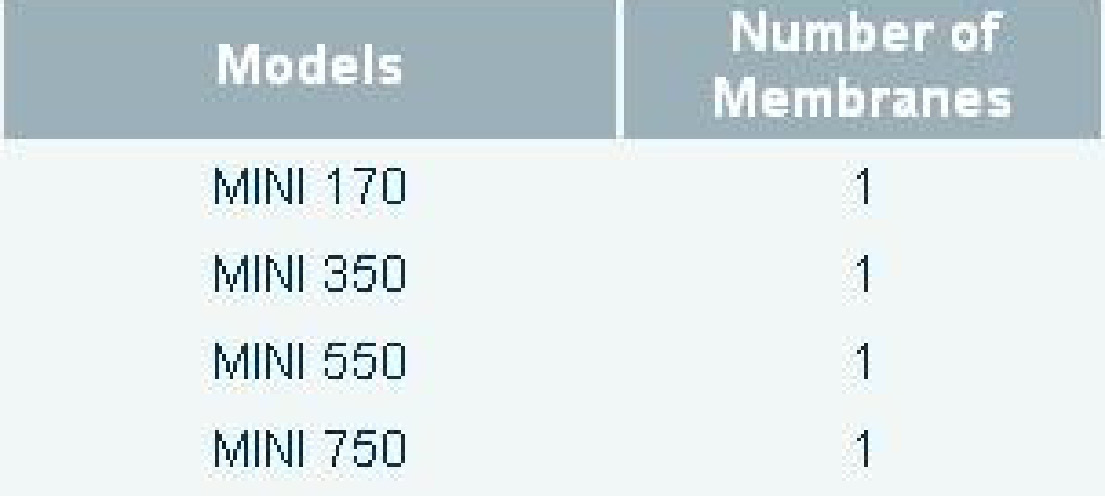

  • Reverse Osmosis Membrane: High Rejection/High Yield aromatic tri-polyamind, thin film composite, spiral wound, single pass reverse osmosis membrane element.
  • Chlorine Tolerance: 0.1 ppm
  • pH Range: 3-11  ( typical seawater pH is 8 )
  • System Pressure:
    Feed Water
    Minimum: 6 psi / .41 bar / .42 Kg/cm2
    Maximum: 35 psi / 2.41 bar / 2.46 Kg/cm2
    System Operation
    Seawater @ 35,000 ppm & 77° F / 25° C
    Nominal: 850 psi / 56.5 bar / 57.66 Kg/cm2. (Brackish varies w/ppm)
  • External Installation Water Connections: Pipe sizes supplied by the installer for connection of Horizon Reverse Osmosis supplied components.
    Seafari Mini 170 & 350:
    Feed Inlet: 1/2″ MNPT (Male National Pipe Thread, Amer. Std)
    Brine Discharge: 1/4″ FNPT (Male National Pipe Thread, Amer. Std)
    Product: 1/4″ FNPT (Female National Pipe Thread, Amer. Std)
    Seafari Mini 550 & 750:
    Feed Inlet: 3/4″ MNPT (Male National Pipe Thread, Amer. Std)
    Brine Discharge: 1/2″ FNPT (Male National Pipe Thread, Amer. Std)
    Product: 3/8″ FNPT (Female National Pipe Thread, Amer. Std)
●Electrical – High Pressure Pump Motor and Booster Pump:

 DIMENSIONS (尺寸):

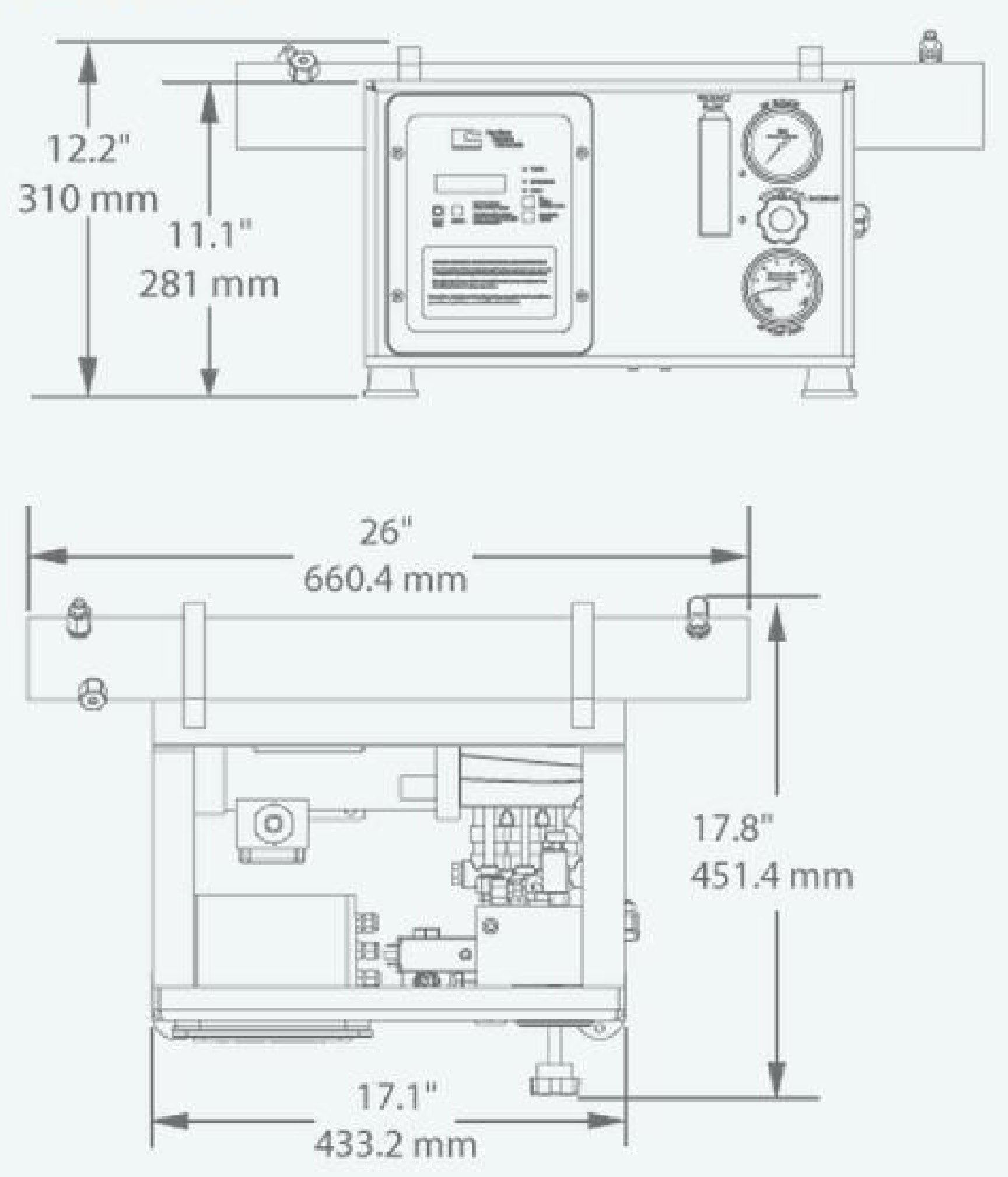

Seafari Mini 170

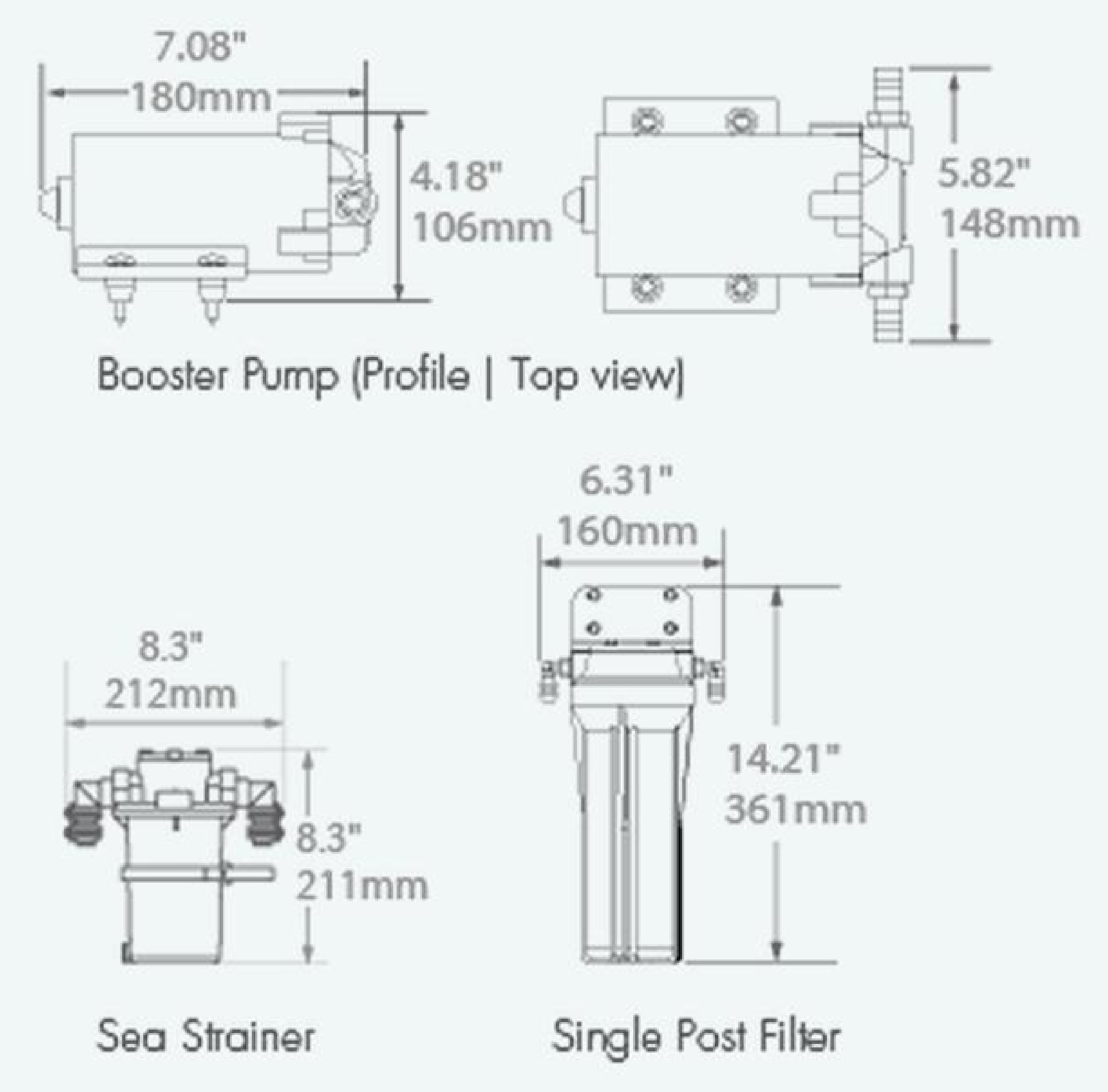

Seafari Mini 170 - Standard Filters and Booster Pump

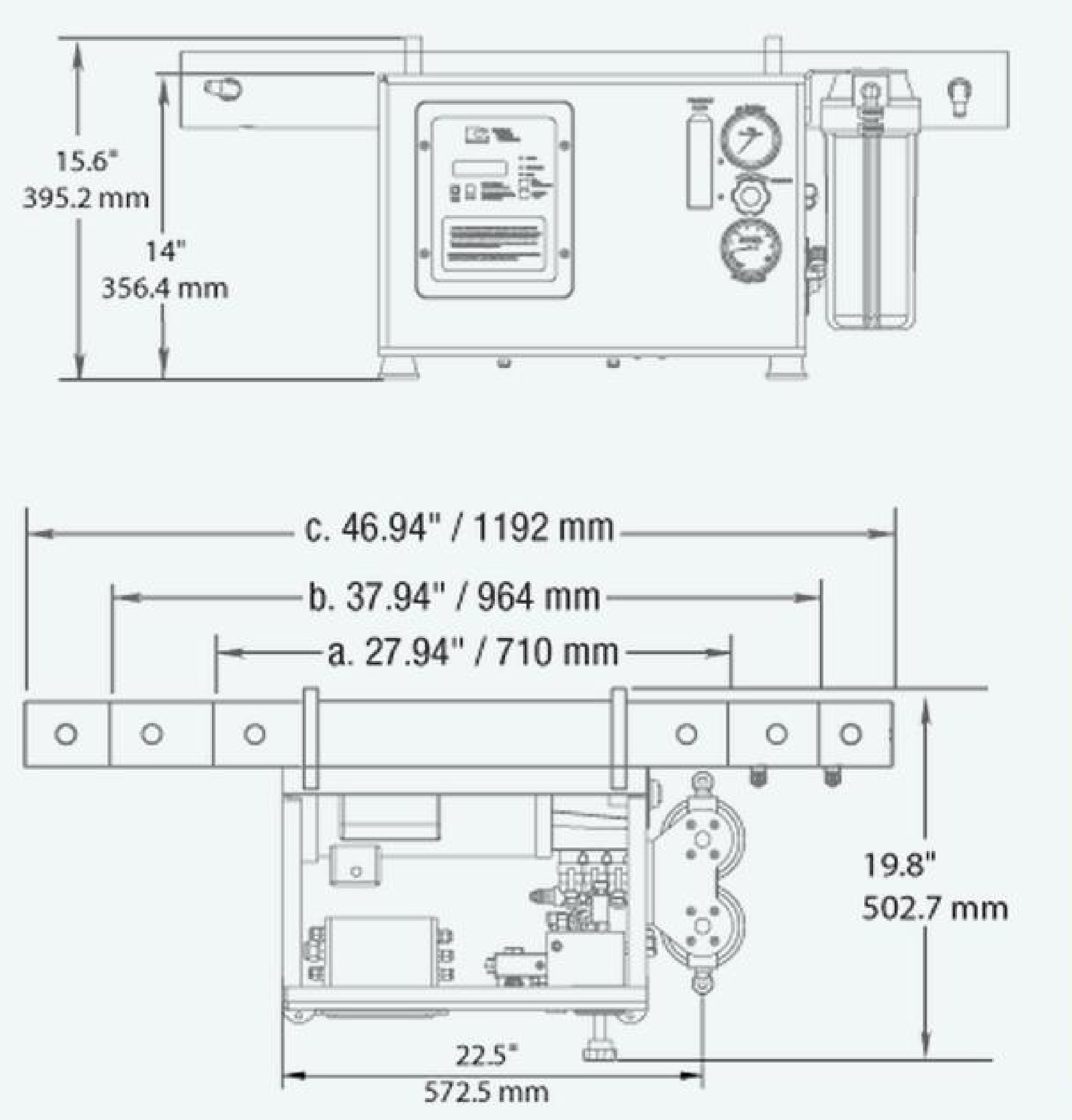

Seafari Mini 350 | 550 | 750
 (a. Mini 350 | b. Mini 550 | c.Mini 750)

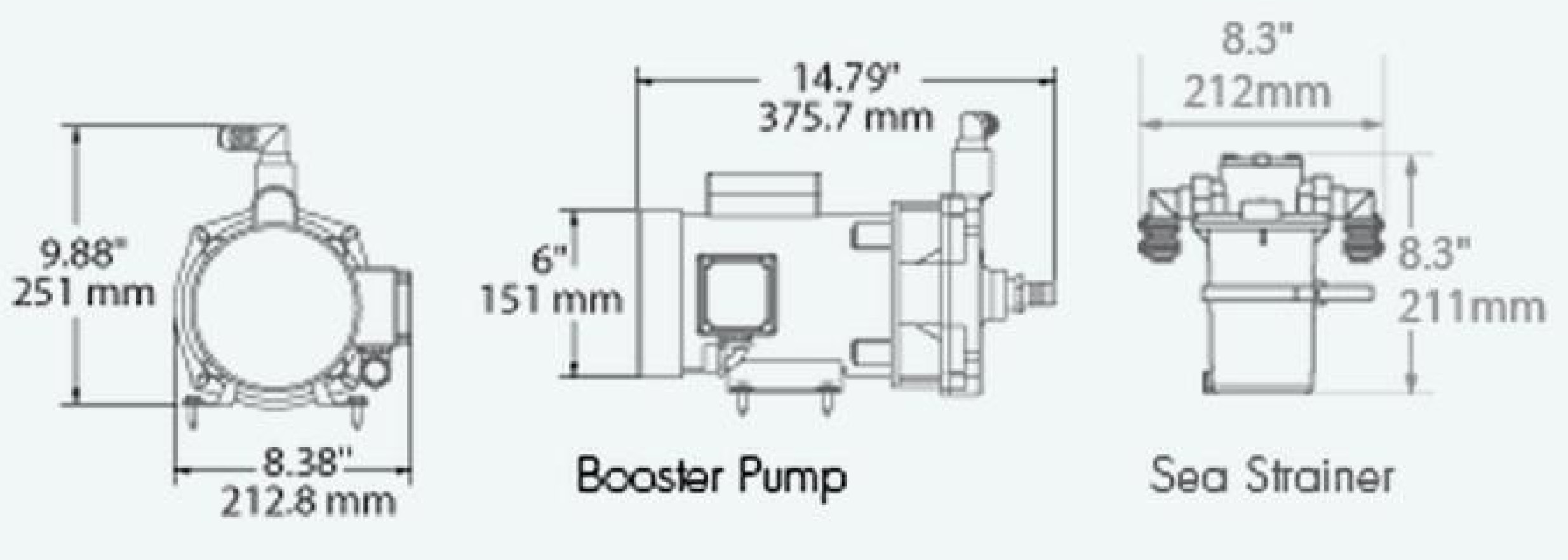

Seafari Mini 350 | 550 | 750 - Booster Pump
